Product Details:
|
| Application: | LASER CUTTING, Automatic Laser Engraving And Cutting | Applicable Material: | Metal |
|---|---|---|---|
| Condition: | New | Laser Type: | Fiber Laser |
| Cutting Area: | 400mm*400mm | Cutting Speed: | ≤7000mm/s |
| Graphic Format Supported: | AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT | Cutting Thickness: | 0.1-20mm |
| CNC Or Not: | Yes | Cooling Mode: | WATER COOLING |
| Control Software: | CYPCUT2000 | Laser Source Brand: | RAYCUS |
| Laser Head Brand: | Raytools | Servo Motor Brand: | Siemens |
| Guiderail Brand: | PMI | Control System Brand: | Cypcut |
| Weight (KG): | 900 KG | Key Selling Points: | High-accuracy |
| Optical Lens Brand: | Might | Warranty: | 2 Years |
| Applicable Industries: | Manufacturing Plant, Advertising Company | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | Other, Laser Source | Mode Of Operation: | Continuous Wave |
| Configuration: | Gantry Type | Products Handled: | Sheet Metal |
| Feature: | Programmable | Applicable Materials: | Precious Metals |
| Line Width: | ≤30μm | Laser Power: | 500W / 1000W / 2000W / 3000W |

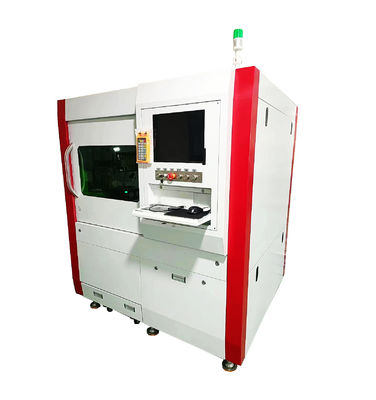

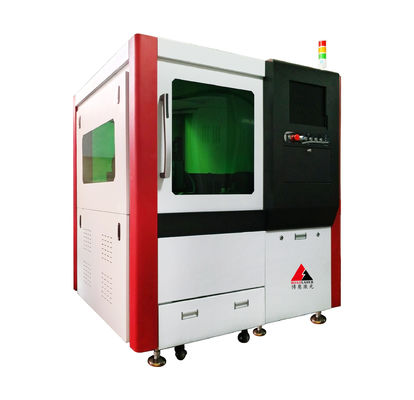

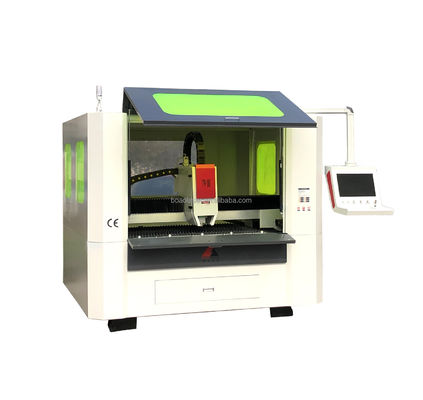

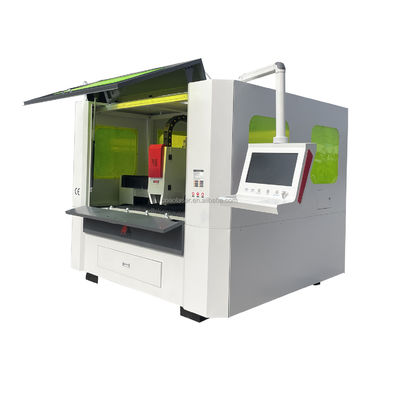

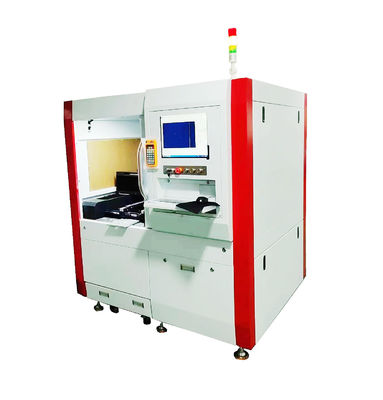

| Laser Source: | Raycus IPG | Product Name: | Fiber Laser Metal Cutting Machine |
| Driving System: | Yasukawa Servo System | Power Supply: | 380V/50/60HZ |
| Laser Tube Type: | CW Fiber | Port: | Tianjin |
|
Model NO:
|
BFC1000
|
|
|
|
|||
|
Laser Type
|
RAYCUS /MAX FIBER ,CHINA
|
|
|
|
|||
|
Laser Wavelength
|
1060nm
|
|
|
|
|||
|
Laser Maximum Power
|
1000W
|
|
|
|
|||
|
Max. Cutting thickness
|
≤12mm
|
|
|
|
|||
|
Total Power Consumption
|
<18KW (380v/ 3Phase/50Hz/)
|
|
|
|
|||
|
Working Size
|
3000*1500 mm
|
|
|
|
|||
|
Max.cutting speed
|
0-30m/min(Depending on the material and thickness)
|
|
|
|
|||
|
X, Y, Z Axis Orientation Precision
|
≤±0.03mm/m
|
|
|
|
|||
|
X, Y, Z Axis Repeat Precision
|
≤±0.03mm /m
|
|
|
|
|||
|
Min line width
|
≤0.15mm
|
|
|
|
|||
|
Maximum Empty Running Speed
|
100m/min
|
|
|
|
|||
|
Driving way
|
Imported servo motor
|
|
|
|
|||
|
Transmission way
|
Y-axis import gear rack double driver, X-axis imported ball screw
|
|
|
|
|||
|
Worktable Max Load
|
1-3Tons
|
|
|
|
|||
|
Cooling System
|
Water Cooling
|
|
|
|
|||
|
Continuous working time
|
24 Hours
|
|
|
|
|||
|
Environment temperature
|
0-35°C
|
|
|
|
|||
|
Power requirements
|
380V/3 Phases /50Hz or 60Hz
|
|
|
|
|||
