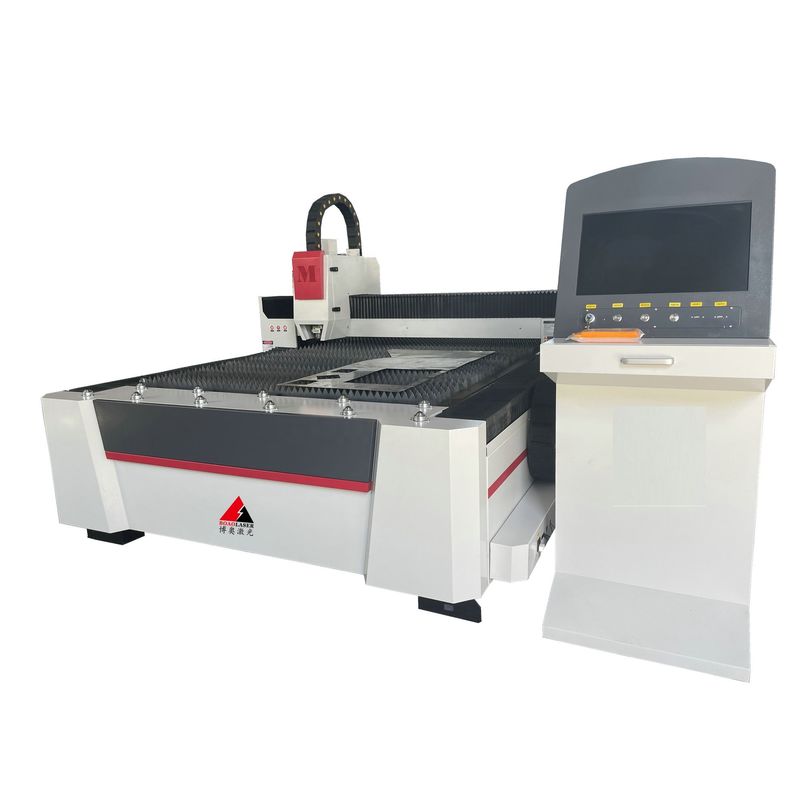

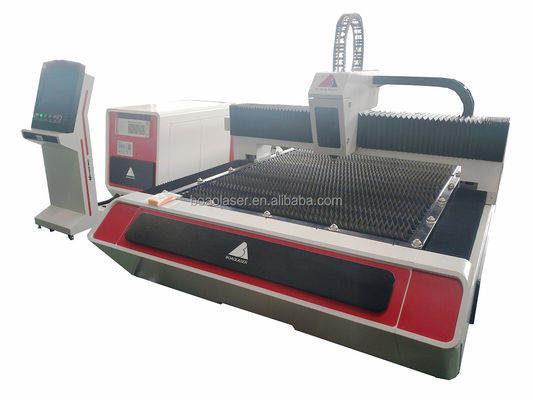

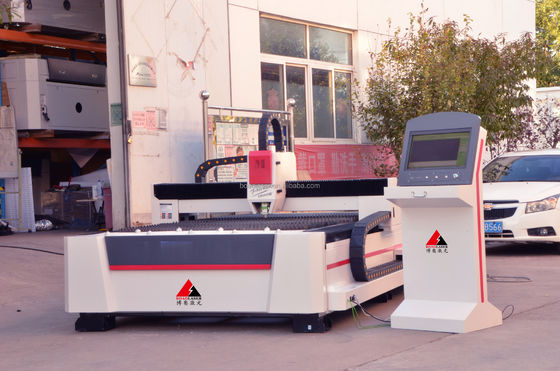

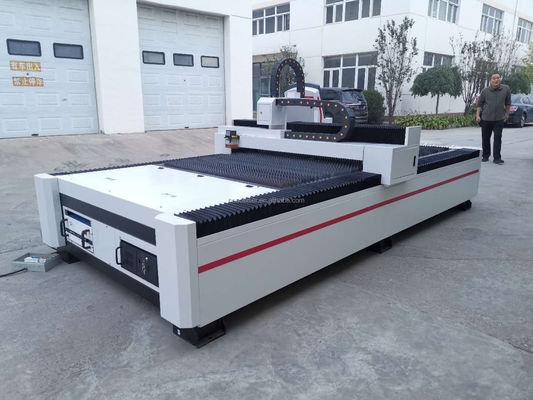

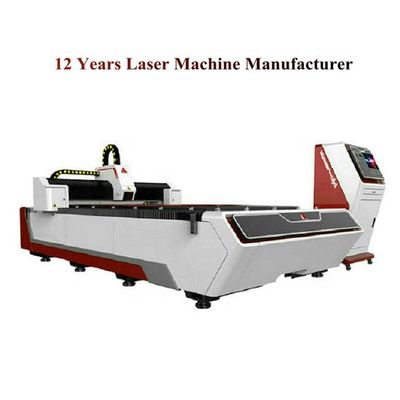

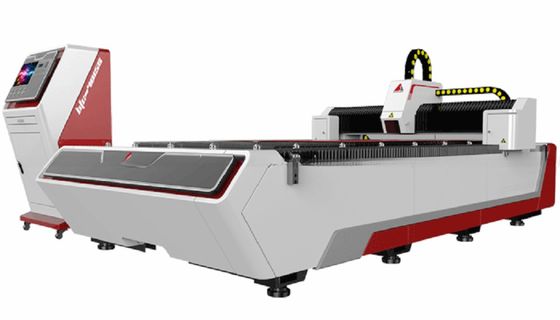

Product Details:
|
| Application: | LASER CUTTING | Applicable Material: | Metal |
|---|---|---|---|
| Condition: | New | Laser Type: | Fiber Laser |
| Cutting Area: | 1500mm*3000mm | Cutting Speed: | 80m-120m/min |
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | Cutting Thickness: | 12mm |
| CNC Or Not: | Yes | Cooling Mode: | WATER COOLING |
| Control Software: | Cypcut | Laser Source Brand: | RAYCUS |
| Laser Head Brand: | Raytools | Servo Motor Brand: | FUJI |
| Guiderail Brand: | PMI | Control System Brand: | Cypcut |
| Weight (KG): | 3500 KG | Key Selling Points: | Automatic |
| Optical Lens Brand: | Wavelength | Warranty: | 2 Years |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Advertising Company | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | Motor, Other, Engine, Laser Source | Mode Of Operation: | Continuous Wave |
| Configuration: | 4-axis | Products Handled: | Sheet Metal |
| Feature: | Automated Loading | Product Name: | Cnc Fiber Laser Cutting Machine |
| Keyword: | Fiber Laser Cutting Machiens | Function: | Cutting Metal Materials |
| Laser Power: | 1000W /1500W/ 2000W / 3000W | Cutting Materials: | Stainless Steel Carbon Steel |
| Cooling System: | Water Chiller Cooling System | After-sales Service Provided: | Online Support |
| Control System: | Cpycut Control | Working Area: | 1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm |
| Key Words: | China Cnc Laser Cutter Machine | Port: | Tianjin, China |
|
Model NO:
|
BFC Series
|
|
|
|
|||
|
Laser Type
|
RAYCUS CHINA
|
|
|
|
|||
|
Laser Wavelength
|
1060nm
|
|
|
|
|||
|
Laser Maximum Power
|
1000W 1500W 2000W 3000W 6000W 8000W 12000W 20000W
|
|
|
|
|||
|
Max. Cutting thickness
|
≤12mm
|
|
|
|
|||
|
Total Power Consumption
|
<35KW (380v/ 3Phase/50Hz/)
|
|
|
|
|||
|
Working Size
|
3000*1500 mm TO 8000*2500MM
|
|
|
|
|||
|
Max.cutting speed
|
0-30m/min(Depending on the material and thickness)
|
|
|
|
|||
|
X, Y, Z Axis Orientation Precision
|
≤±0.03mm/m
|
|
|
|
|||
|
X, Y, Z Axis Repeat Precision
|
≤±0.03mm /m
|
|
|
|
|||
|
Min line width
|
≤0.15mm
|
|
|
|
|||
|
Maximum Empty Running Speed
|
100m/min
|
|
|
|
|||
|
Driving way
|
Imported servo motor
|
|
|
|
|||
|
Transmission way
|
Y-axis import gear rack double driver, X-axis imported ball screw
|
|
|
|
|||
|
Worktable Max Load
|
3-6 Tons
|
|
|
|
|||
|
Cooling System
|
Water Cooling
|
|
|
|
|||
|
Continuous working time
|
24 Hours
|
|
|
|
|||
|
Environment temperature
|
0-35°C
|
|
|
|
|||
|
Power requirements
|
380V/3 Phases /50Hz or 60Hz
|
|
|
|
|||
